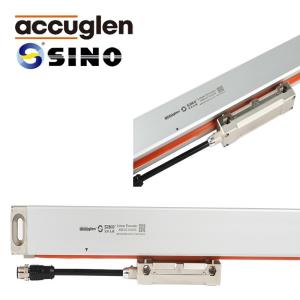

High Precision Enclosed Absolute Linear Grating Ruler (Ka-200) Applied To CNC Machine Tools

The following features of our grating ruler:

1. Fast movement, exceeding 60 meters per minute

2. The sliding components of the bearing can perform minimal frictional motion and effective repeated placement along the grating glass.

3. The signal cable adopts multi-layer isolation steel wire mesh and metal soft shell protection, which has good waterproof and anti-interference performance.

4. Due to the use of anodizing technology in aluminum alloy materials, the sturdy chrome plated alloy scales and protruding parts of the body are wear-resistant.

5. By using a grating to locate the position, linear rulers can be used on various digital reading machines to assist in internal processing.

installation using a KA-200 full cover grating ruler with a D, X, and H type ruler cover

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

Our company, Guangzhou SINO International Trade Co., Ltd is located in Guangzhou city, Guangdong province, China. Guangzhou SINO International Trade Co. LTD is the subsidiary of the SINO group. SINO specializes in the development and manufacture of high-precision measuring products since 2002. It has a series of the world’s most advanced equipment and has been certificated by IS09001, CE, RoHS, and the electrical safety standards for European authentication. The competitive products linear grating ruler and digital readout are famous in the world. With untiring efforts in development in this area since 1989, the best seller in China for the last ten years.

SINO is the leading linear encoder & DRO manufacturer in China. Our main products included linear scales encoder, magnetic encoder, angle encoder, and DRO displays suitable for milling, lathe, EDM, grinding machine, boring machine and we keep developing and improving to move forward with very good quality. The company has cooperated with many clients from overseas and has obtained consistently high praise from our customers since it was set up. The company tries its best to do well at any aspect from each stitch, each point of procedure of manufacturing to final inspection, packing, and shipment. We insist on the principle of development of 'All we do are clients need' to provide you with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation.
